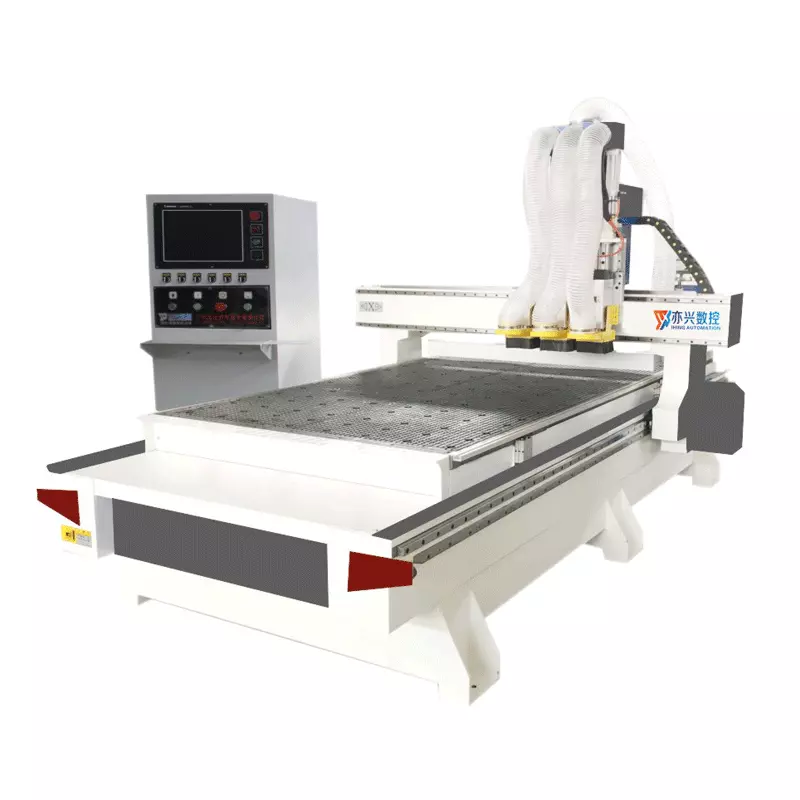

Double/Triple Process Cutting and Drilling Integrated Machine
Product Details
Appllcable Industry
Panel fumiture, cabinet wardrobe, office furniture, custom furniture.
Main configuration
| HSD/HQD special cutting head, large cutting force, and fast processing speed. |
| High precision rack: smooth fransmission, lower noise, high driving forque. |
| Square guide makes the machine run smoothly, with durable service, and sliding guide rail is safety and has no de-formation. |
| The table adopts the thickened bakelite plate with high density, thickenedaluminum profile tub, with bar adsorption, and can adsorb different areasof materials. |
| The machine bed is the whole steel plate with one seamless welding.thickened steel beams are treated by aging tempering treatment for 8 hours.and internal stress is eliminated to make the bed with good stability, robustnessnot deformation used for a long time, to guarantee the machine precision. |
Products Description
| NO. | Items | I2 |
| 1 | Xtravel | 1240mm |
| 2 | Ytravel | 2460mm |
| 3 | Ztravel | 200mm |
| 4 | Working size | 1240x2460mm |
| 5 | Working accuracy | +/-0.05mm |
| 6 | Repeated positioningaccuracy | +/-0.02mm |
| 7 | Table structure | Vacuum adsorption bakelite plate |
| 8 | XYz axle structure | XY screwrack Zscrewrod |
| 9 | Machine consumable power | 2.0kw Notincluding cutting head power |
| 10 | Max working spead | 10000mmimin |
| 11 | Max traverse speed | 35000mm/min |
| 12 | Spindle power | 3.0kw/6.0kw |
| 13 | Spindle speed | 0-18000rpm |
| 14 | Operating mode | servomotor |
| 15 | Operating system | Ncstudio |
| 16 | Vacuum pump | Water-cooled 7.5KM |
